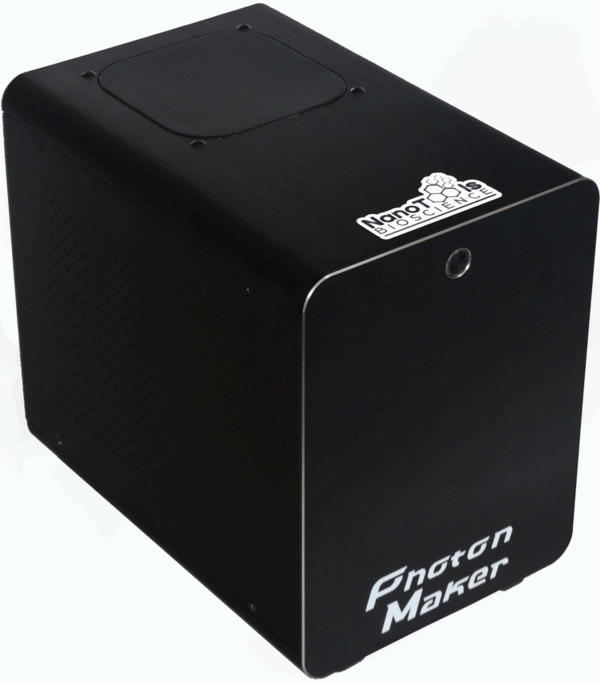

Photon Maker Optical Illumination system

PhotonMaker

$7,900.00Price

Overview

Photon Maker is a highly efficient LED-based light illumination system for a broad range of microscopy applications.

Designed for life-cell and fixed-cell multicolor imaging and all-optical electrophysiology recordings, Aladdin LS1 is optimized for various types of optical fluorescent stimulation. System covers various kinds of applications with excitation of  all major fluorophores from UV to RED.


System can deliver enough light energy for demanding applications like compound uncaging.

System is easy to operate. Photon Maker system can be configured independently in a dedicated stand-alone Photon Maker software and run both in full Manual Mode of Operation or from the built-in Real-time Controller. The wavelength selection allows to use the  popular multiband filter sets.



The connection to a microscope is established via a liquid light guide (3-mm and 5-mm options available)

Photon Maker has 7 colors that can be controlled and triggered independently and individually, built in real-time controller to handle up to 4 external devices (e.g. cameras, perfusion system, electrophysiology, etc.). Easy integration to existing commercial software products with flexible two-way synchronization.

Our free integrated optical stimulation software can be used with any available commercial imaging software.



Features:



Details

Trigger speed <1 ms (external TTL mode)

Internal software sync <100 ms (typical <10 ms)

Power adjustment range: 0.1% to 100% with 0.1% increment

Guaranteed linear range: 0.5% to 100%.

Optical power output (after the liquid light guide):

280

100

White

430-750*

430-750*

125

80

UV

398

399

320

100

Blue

452

454

110

40

Cyan

500

507

120

40

Green

515

528

55

20

Amber

601

594

180

60

RED

638

628

Color

Peak wavelength, nm (at 100% power)

Peak wavelength, nm (at 1% power)

5 mm fiber, mW

3 mm fiber, mW

  • Integrated 7 individual LEDs with independent individual power control

  • Customizable external control of the individual channels

  • Easy control of external TTL devices (cameras, etc.)

  • Full manual software control

  • Calibrated Linear optical light intensity adjustment

  • Control of LED panel temperature for illumination stability

  • No user alignment required, comes factory aligned

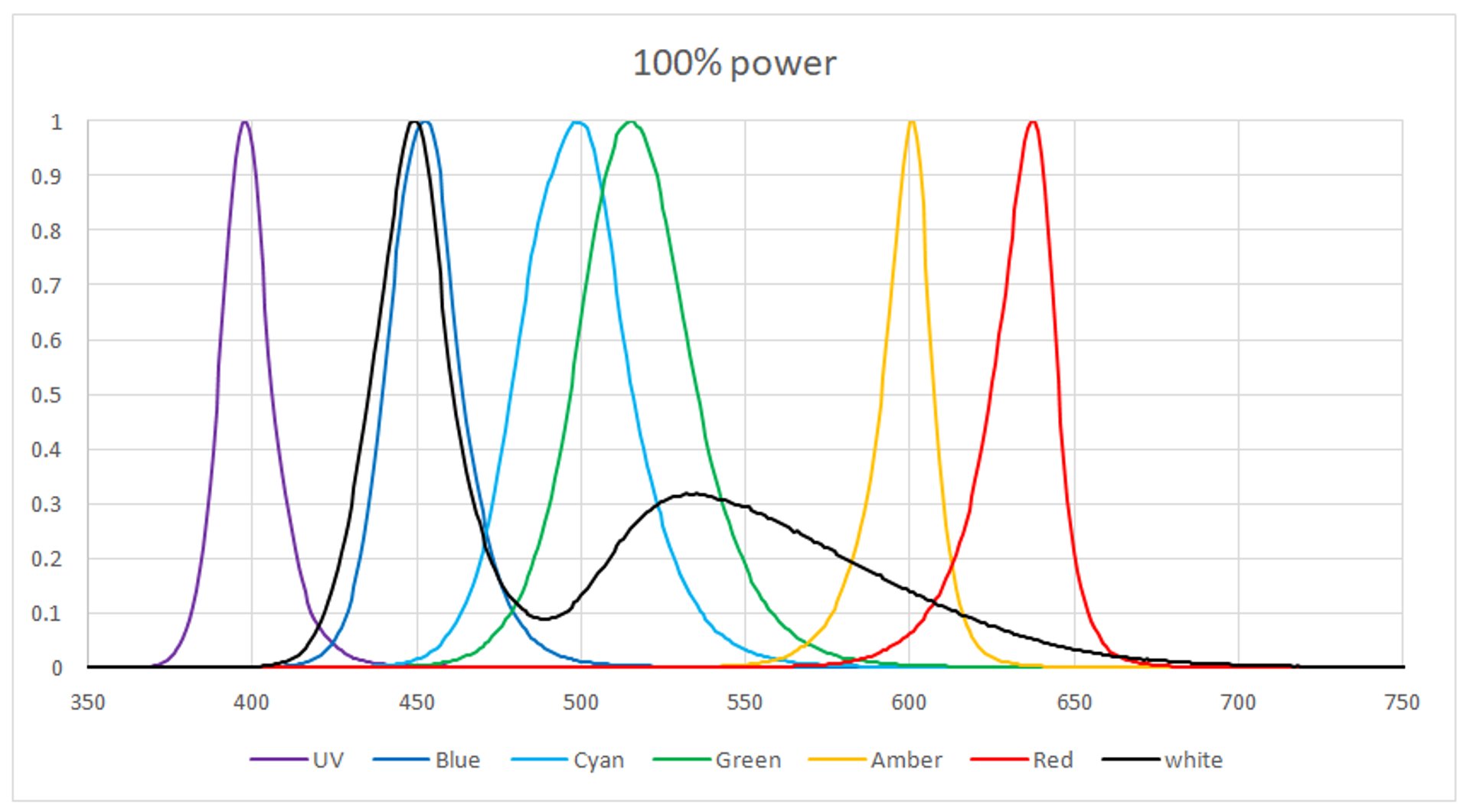

Relative spectra (typical, at 100% power):
